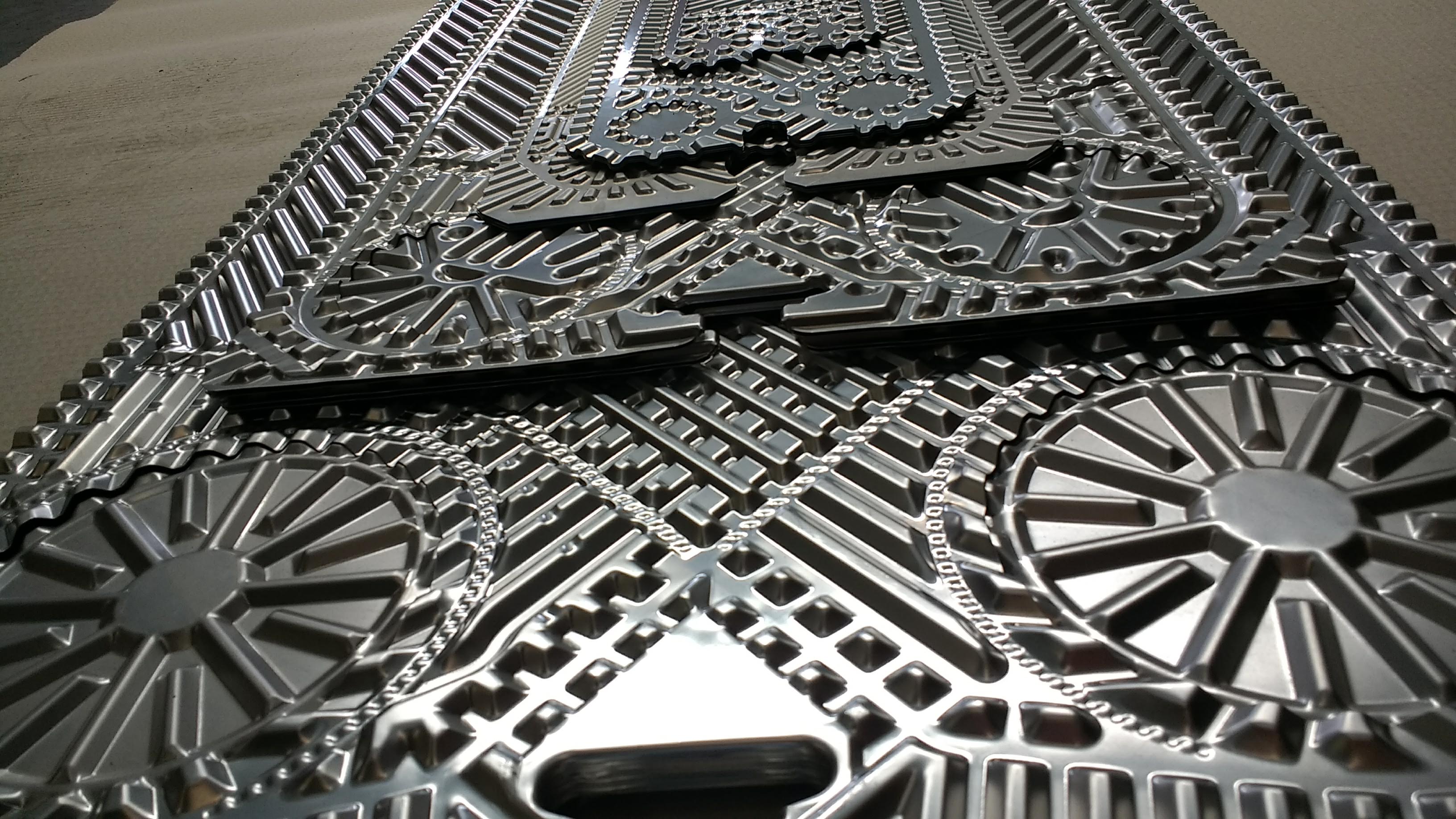

PLATE AND FRAME


The Plate & Frame heat exchanger consists of specially formed individual plates and are assembled to form the “plate pack”. A gasket of suitable material between the plates seals the liquid and directs the flow. The end frames and heavy threaded rods compress the plate pack to create a highly efficient heat transfer unit.


Manufactured to all design codes including ASME VIII Div 1, EN13445, PD5500 & AD2000.


Wide range of metallurgies including Stainless Steel, 254SMO, Hastelloy and Titanium plate material.


Allards International Ltd use in house software to thermally and mechanically design each heat exchanger according to code and client specifications.

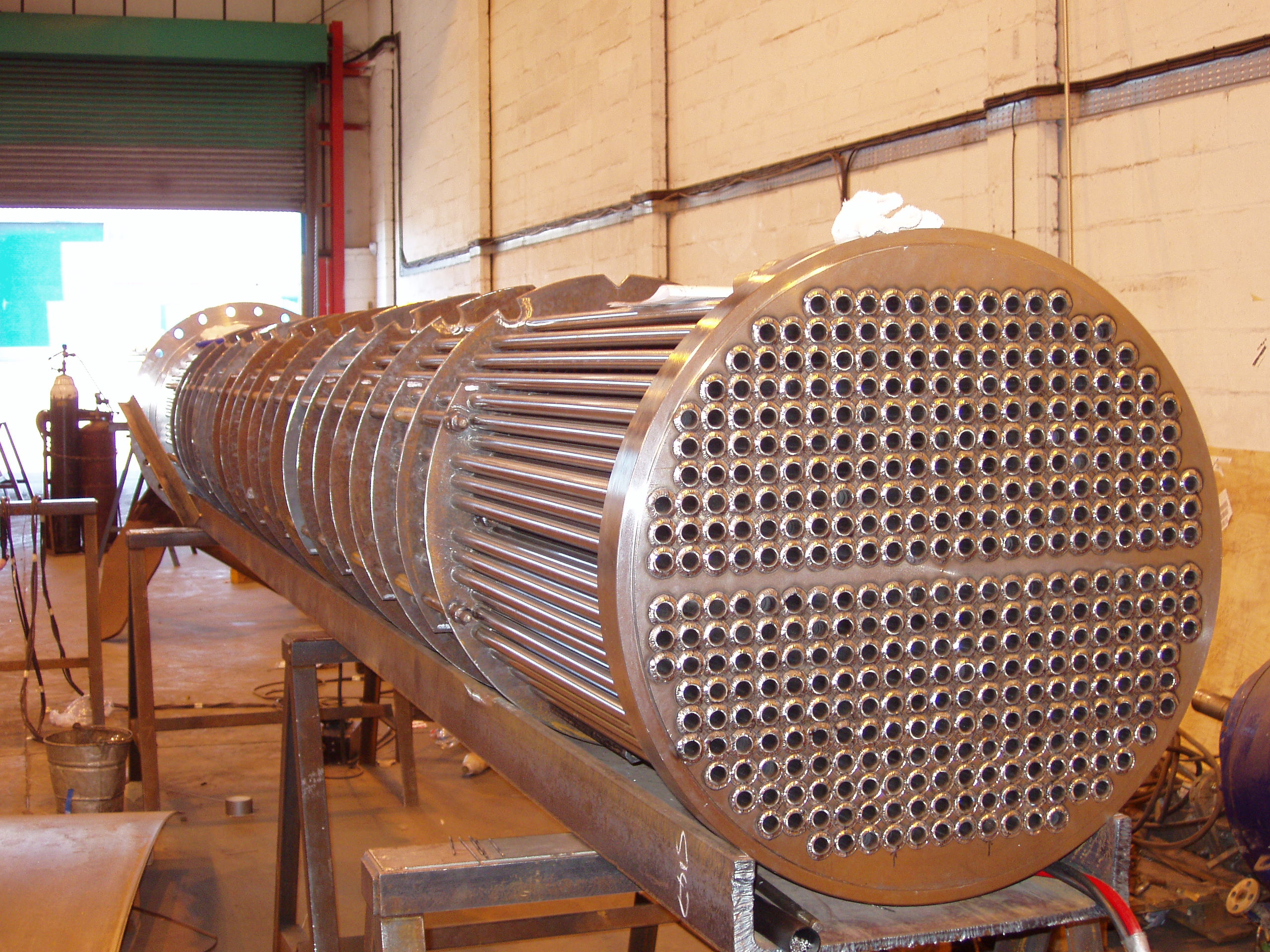

SHELL AND TUBE


Allards International designs and manufactures Shell & Tube heat exchangers in accordance with TEMA. TEMA Class “R” shell and tube heat exchangers for generally severe requirements of petroleum and related processing applications; TEMA Class “C” shell and tube heat exchangers for generally moderate requirements of commercial and general process applications and Class “B” for chemical process service.

Manufactured to all design codes including ASME VIII Div 1 & Div 2; EN13445; PD5500; RCC-M & AD:2000.

Designed to withstand high pressures, typically up to 100bar, however this can be significantly higher.

Wide range of metallurgies including Carbon Steel, Stainless Steel, 22%Cr & 25%Cr Duplex, 254SMO and Titanium material.

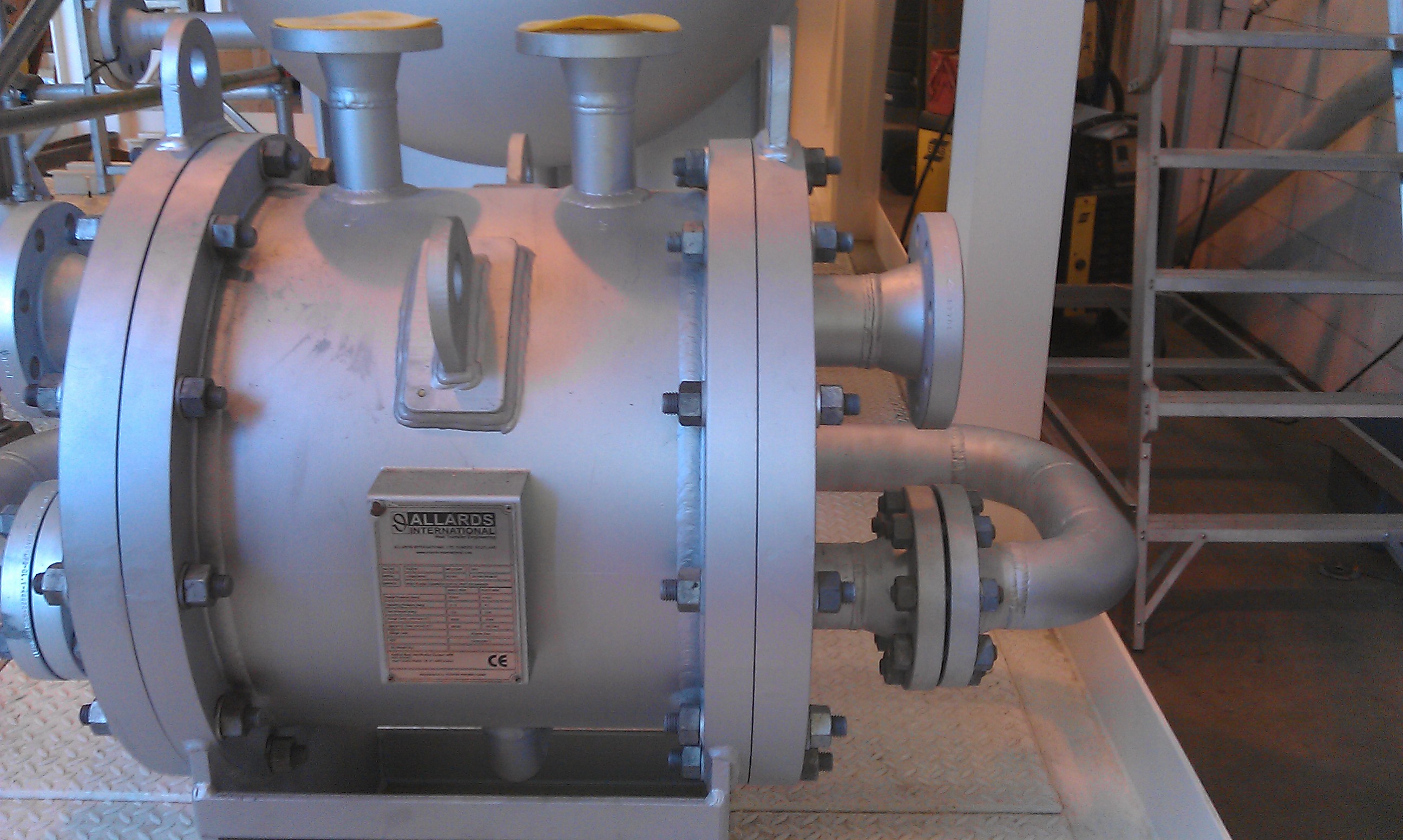

WELDED PLATE HEAT EXCHANGER


The fully Welded Plate Heat Exchanger integrated with a Shell combines the merits of Shell and Tube heat exchangers with the advantages of conventional Plate heat exchanger technology.


The Welded Plate heat exchanger consists of a fully welded plate pack of circular plates welded together and installed into a pressure vessel which allows a compact and low weight design that is also very strong mechanically.


High design pressures, over 100 bar can be achieved.


Wide range of metallurgies including Stainless Steel, 254SMO, Hastelloy and Titanium plate material.
